ANDROID01

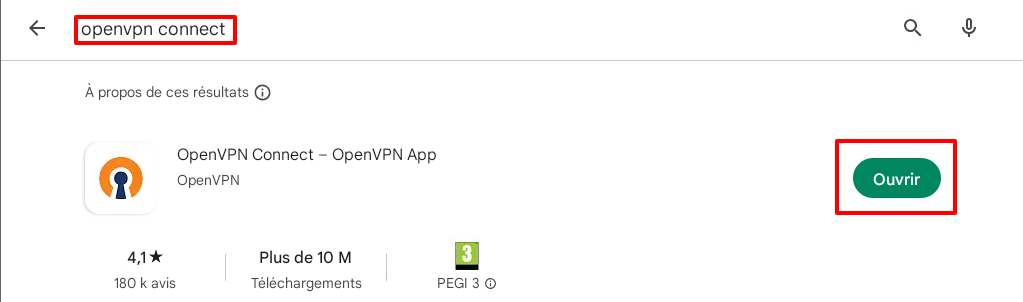

Ouvrir le play store.
Téléchargez l’application OpenVPN Connect puis ouvrez la:

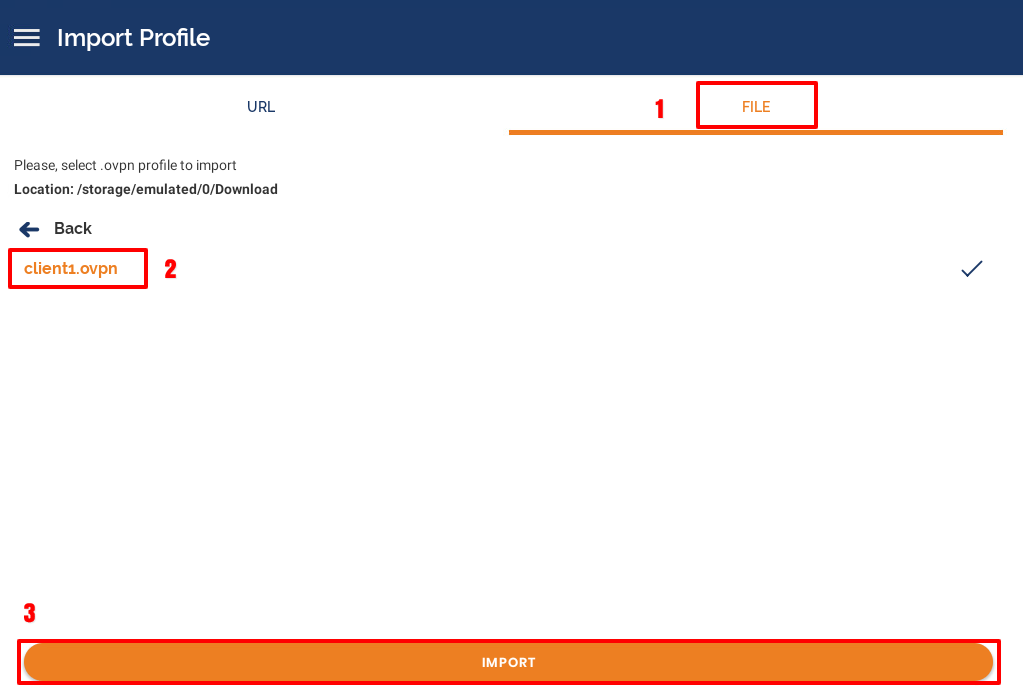

Sélectionnez “FILE” (1) afin d’importer la configuration .ovpn cliente depuis votre système de fichier.
Sélectionnez “client1.ovpn” (2)
Importez la configuration (3):

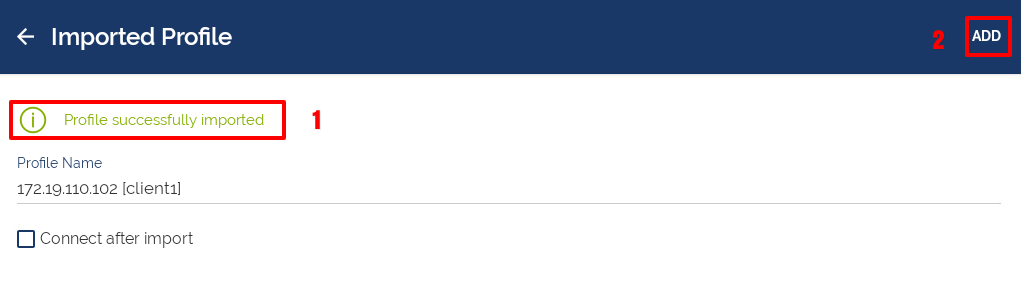

Vérifiez que la configuration a correctement été importée (1)
Validez l’ajout de celle-ci (2):

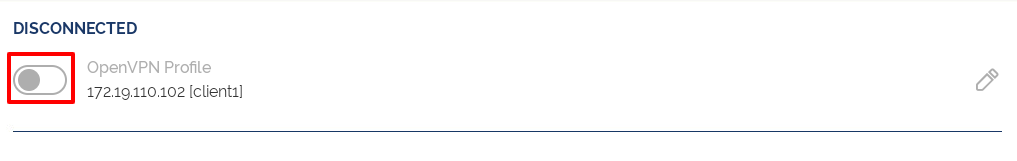

Initiez la connexion VPN avec SRV01:

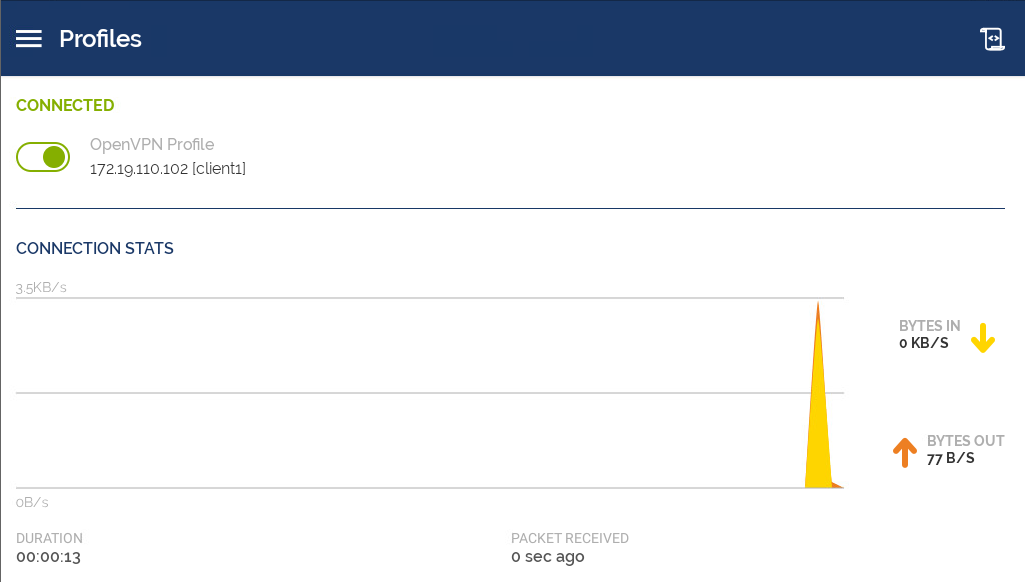

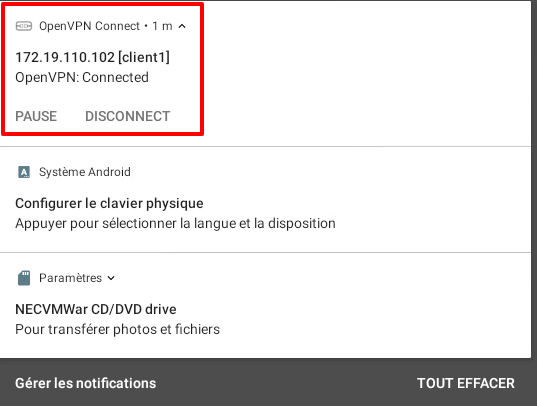

On peut voir que la connexion a été établie avec succès dans les deux images suivantes:
PCAP OpenVPN
1 0.000000000 VMware_a9:0f:c2 → Broadcast ARP 60 Who has 172.19.110.102? Tell 172.19.110.185
2 0.000318644 VMware_84:84:19 → VMware_a9:0f:c2 ARP 42 172.19.110.102 is at 00:0c:29:84:84:19
3 0.000574411 172.19.110.185 → 172.19.110.102 OpenVPN 96 MessageType: P_CONTROL_HARD_RESET_CLIENT_V2
4 0.003233619 172.19.110.102 → 172.19.110.185 OpenVPN 108 MessageType: P_CONTROL_HARD_RESET_SERVER_V2
5 0.041809090 172.19.110.185 → 172.19.110.102 SSL 385 Continuation Data
6 0.045838272 172.19.110.102 → 172.19.110.185 OpenVPN 104 MessageType: P_ACK_V1
7 0.045968505 172.19.110.102 → 172.19.110.185 SSL 1158 Continuation Data
8 0.046046941 172.19.110.102 → 172.19.110.185 SSL 1095 Continuation Data
9 0.068842791 172.19.110.185 → 172.19.110.102 OpenVPN 104 MessageType: P_ACK_V1
10 0.111070803 172.19.110.185 → 172.19.110.102 SSL 1358 Continuation Data
11 0.111070913 172.19.110.185 → 172.19.110.102 SSL 1127 Continuation Data
12 0.111253243 172.19.110.102 → 172.19.110.185 OpenVPN 104 MessageType: P_ACK_V1
13 0.114420178 172.19.110.102 → 172.19.110.185 SSL 266 Continuation Data
14 0.114487003 172.19.110.102 → 172.19.110.185 SSL 324 Continuation Data
15 0.125026513 172.19.110.185 → 172.19.110.102 OpenVPN 104 MessageType: P_ACK_V1
16 0.125728482 172.19.110.185 → 172.19.110.102 OpenVPN 104 MessageType: P_ACK_V1
17 0.128288836 172.19.110.185 → 172.19.110.102 SSL 131 Continuation Data
18 0.128688341 172.19.110.102 → 172.19.110.185 OpenVPN 104 MessageType: P_ACK_V1
19 0.128742652 172.19.110.102 → 172.19.110.185 SSL 336 Continuation Data
20 0.227030178 172.19.110.185 → 172.19.110.102 OpenVPN 104 MessageType: P_ACK_V1
21 0.227319768 172.19.110.185 → 172.19.110.102 OpenVPN 142 MessageType: P_DATA_V2
22 0.227319838 172.19.110.185 → 172.19.110.102 OpenVPN 114 MessageType: P_DATA_V2
23 0.227319868 172.19.110.185 → 172.19.110.102 OpenVPN 142 MessageType: P_DATA_V2
24 0.227319888 172.19.110.185 → 172.19.110.102 OpenVPN 142 MessageType: P_DATA_V2
25 0.227319918 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
26 0.227319948 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
27 0.227744620 10.8.0.6 → 208.67.222.222 TCP 74 37176 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=1365361639 TSecr=0 WS=128
28 0.227984477 10.8.0.6 → 208.67.220.220 TCP 74 33064 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=3176694141 TSecr=0 WS=128
29 0.619421037 172.19.110.185 → 172.19.110.102 OpenVPN 142 MessageType: P_DATA_V2
30 1.251365465 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
31 1.251440395 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
32 1.251565047 10.8.0.6 → 208.67.220.220 TCP 74 [TCP Retransmission] 33064 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=3176695165 TSecr=0 WS=128
33 1.251608028 10.8.0.6 → 208.67.222.222 TCP 74 [TCP Retransmission] 37176 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=1365362664 TSecr=0 WS=128
34 2.531298279 172.19.110.185 → 172.19.110.102 OpenVPN 130 MessageType: P_DATA_V2
35 2.531505214 10.8.0.6 → 208.67.222.222 DNS 78 Standard query 0xc4a0 A www.googleapis.com
36 2.542159538 172.19.110.185 → 172.19.110.102 OpenVPN 138 MessageType: P_DATA_V2
37 2.542528075 10.8.0.6 → 208.67.222.222 DNS 86 Standard query 0xd363 A android.clients.google.com
38 2.680941553 172.19.110.185 → 172.19.110.102 OpenVPN 136 MessageType: P_DATA_V2
39 2.681118523 10.8.0.6 → 208.67.222.222 DNS 84 Standard query 0xd725 A ssl.google-analytics.com
40 3.303449547 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
41 3.303449908 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
42 3.303632288 10.8.0.6 → 208.67.222.222 TCP 74 [TCP Retransmission] 37176 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=1365364712 TSecr=0 WS=128
43 3.303677562 10.8.0.6 → 208.67.220.220 TCP 74 [TCP Retransmission] 33064 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=3176697214 TSecr=0 WS=128
44 3.374885343 172.19.110.185 → 172.19.110.102 OpenVPN 141 MessageType: P_DATA_V2
45 3.375072061 10.8.0.6 → 208.67.222.222 DNS 89 Standard query 0xee02 A connectivitycheck.gstatic.com
46 3.882933318 VMware_a9:0f:c2 → Broadcast RARP 60 Who is 00:0c:29:a9:0f:c2? Tell 00:0c:29:a9:0f:c2
47 4.195344698 172.19.110.185 → 172.19.110.102 OpenVPN 114 MessageType: P_DATA_V2
48 4.476845245 172.19.110.185 → 172.19.110.102 OpenVPN 139 MessageType: P_DATA_V2
49 4.477046560 10.8.0.6 → 208.67.222.222 DNS 87 Standard query 0xd39d A playatoms-pa.googleapis.com
50 5.158265249 VMware_84:84:19 → VMware_a9:0f:c2 ARP 42 Who has 172.19.110.185? Tell 172.19.110.102
51 5.158656268 VMware_a9:0f:c2 → VMware_84:84:19 ARP 60 172.19.110.185 is at 00:0c:29:a9:0f:c2
52 5.414259592 VMware_84:84:19 → VMware_ba:96:9c ARP 42 Who has 172.19.110.1? Tell 172.19.110.102
53 5.414692149 VMware_ba:96:9c → VMware_84:84:19 ARP 60 172.19.110.1 is at 00:50:56:ba:96:9c
54 7.331481049 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
55 7.331481500 172.19.110.185 → 172.19.110.102 OpenVPN 126 MessageType: P_DATA_V2
56 7.331667647 10.8.0.6 → 208.67.220.220 TCP 74 [TCP Retransmission] 33064 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=3176701245 TSecr=0 WS=128
57 7.331701570 10.8.0.6 → 208.67.222.222 TCP 74 [TCP Retransmission] 37176 → 853 [SYN] Seq=0 Win=64240 Len=0 MSS=1361 SACK_PERM=1 TSval=1365368745 TSecr=0 WS=128
58 7.536042608 172.19.110.185 → 172.19.110.102 OpenVPN 130 MessageType: P_DATA_V2
59 7.536412197 10.8.0.6 → 208.67.220.220 DNS 78 Standard query 0xc4a0 A www.googleapis.com
60 7.549093359 172.19.110.185 → 172.19.110.102 OpenVPN 138 MessageType: P_DATA_V2
61 7.549173178 10.8.0.6 → 208.67.220.220 DNS 86 Standard query 0xd363 A android.clients.google.com
62 7.685992133 172.19.110.185 → 172.19.110.102 OpenVPN 136 MessageType: P_DATA_V2
63 7.686142003 10.8.0.6 → 208.67.220.220 DNS 84 Standard query 0xd725 A ssl.google-analytics.com
64 8.376330879 172.19.110.185 → 172.19.110.102 OpenVPN 141 MessageType: P_DATA_V2
65 8.376522016 10.8.0.6 → 208.67.220.220 DNS 89 Standard query 0xee02 A connectivitycheck.gstatic.com
66 9.482614125 172.19.110.185 → 172.19.110.102 OpenVPN 139 MessageType: P_DATA_V2
67 9.482944691 10.8.0.6 → 208.67.220.220 DNS 87 Standard query 0xd39d A playatoms-pa.googleapis.com
